Original Prusa i3 MK3S+ 3D printer
Original Prusa i3 MK3S+ 3D printer
The Original Prusa i3 MK3S+ is the latest version of the award-winning 3D printers. Prusa Research has upgraded the MK3S with a brand new SuperPINDA probe for improved first layer calibration, added high-quality bearings and various useful design tweaks to make the printer easier to assemble and maintain. The MK3S+ includes all the proven features of the previous models, including the heatbed with removable PEI spring steel print sheets, automatic Mesh Bed Leveling, filament sensor, power loss recovery (power panic) and safety features. And it is still as silent as ever!

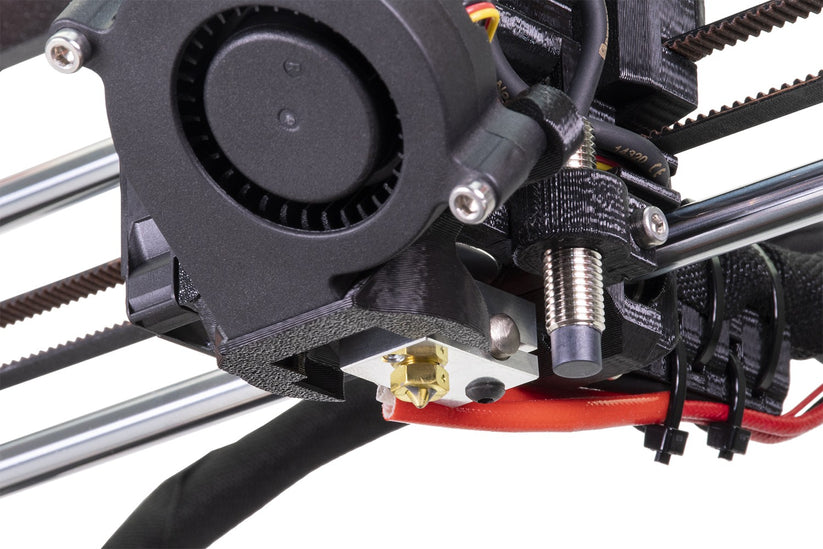

SuperPINDA probe features a hiqh-quality sensor for a fully-automatic Mesh Bed Leveling process. Before every print, the MK3S+ probes the bed in several places and creates a virtual heightmap of the print area. This process ensures that the first layer will always be spot on!
Bearings & more
The MK3S+ features a new set of metal clips for the bearings on the Y-axis. The belt tensioning mechanism on the X-axis was reworked and the X-end plastic parts reinforced. The filament path in the extruder was altered for better support of flexible filaments.
Removable Print Sheets
Spring steel sheets are easy to maintain and make removing the printed object from the print surface a breeze. Prusa Research offer three types of print surface: smooth, textured and satin to cover all your needs when printing from a wide range of different materials - most of which do not require any special separation layers or surface preparation.
The MK3S+ features an aluminum extrusion Y-axis assembly. Thanks to the milled frame, the MK3S+ is stable, rigid, and easy to assemble. Combined with their internally developed extruder featuring Bondtech gears and the E3D V6 hotend, the MK3S+ can print high-quality objects up to 210 mm in height.
Power Loss Recovery
Are you afraid of a blackout ruining your 48-hour print? Worry no more - the MK3S+ can deal with that! The printer can fully recover from the loss of power and continue printing exactly where it left off. It detects power interruptions and shuts down the heatbed and extruder heating, and saves the last known location.
The MK3S+ further enhances the reworked extruder from the MK3S. The built-in filament sensor uses a reliable trigger system, which detects whether a strand of filament is inserted into the extruder. It can detect any type and color of filament and is not susceptible to mechanical wear.
Mesh Bed Leveling
Thanks to the SuperPINDA probe, the MK3S+ can use the Mesh Bed Leveling process to compensate for microscopic imperfections of the print sheet, and inconsistencies caused by the assembly and stacking of the manufacturing tolerances of various parts. Achieving a great-looking first layer is quick and easy.
Slice with PrusaSlicer
Prusa Research has their internally developed multiplatform slicer with in-house made and fully tested profiles for all of our 3D printers and a wide range of filaments. With built-in tools, such as advanced support generation, cutting, automated object distribution, ironing and many others, you will turn your 3D models into print files in no time!
Support for a wide range of Materials
The MK3S+ is fully compatible with a wide range of various types of materials. No matter whether you want to print something for fun from PLA and flexible materials, or you need to produce durable prototypes from PETG, ASA, Polycarbonate and Polypropylene - the MK3S+ can handle them with ease.
Open-source Hardware & Firmware
Prusa Research develops firmware for all of their 3D printers and test every new version thoroughly before release. Ongoing development and regular updates ensure that their machines are packed with useful features, such as print sheet profiles, automated calibration, Mesh bed leveling, advanced diagnostics, remaining print time estimation, Octoprint support and more!
|Build Volume||25×21×21 cm (9.84"×8.3"×8.3")|
|Layer height||0.05 - 0.35 mm|
|Nozzle||0.4mm default, wide range of other diameters/nozzles supported|
|Filament diameter||1.75 mm|
|Supported materials||Wide range of thermoplastics, including PLA, PETG, ASA, ABS, PC (Polycarbonate), CPE, PVA/BVOH, PVB, HIPS, PP (Polypropylene), Flex, nGen, Nylon, Carbon filled, Woodfill and other filled materials.|
|Max travel speed||200+ mm/s|
|Max nozzle temperature||300 °C / 572 °F|
|Max heatbed temperature||120 °C / 248 °F|
|Extruder||Direct Drive, Bondtech gears, E3D V6 hotend|
|Print surface||Removable magnetic steel sheets(*) with different surface finishes, heatbed with cold corners compensation|
|Printer dimensions (without spool)||7 kg, 50×55×40 cm; 19.6×21.6×15.7 in (X×Y×Z)|
|Power consumption||PLA settings: 80W / ABS settings: 120W|
* Consumable parts, such as PEI sheets (smooth, textured, etc.) are not covered by warranty as the coatings are designed to diminish over time unless failure has occurred due to a defect in materials or workmanship. Cosmetic damage, including but not limited to scratches, dents, cracks, or other cosmetic damage is also not covered by the warranty. Only defective sheets on arrival are covered by warranty.
Full Features List (October 2021 Edition)
- Controller: EINSY RAMBo 8-bit board with Trinamic 2130 drivers (256 microstepping), co-developed with Ultimachine, sensorless homing for X and Y axes
- Mesh Bed Leveling: Advanced high-quality SuperPINDA sensor (Super Prusa INDuction Autoleveling sensor)
- Print sheet profiles: Firmware supports print sheet profiles to store Live Z calibration data to enable quick switching between different print sheets.
- Filament sensor: IR sensor built-in, supports filament auto-loading. Print pauses when filament runs out.
- Power Panic: Hardware-based, single G-code line accuracy
- Ethernet connection: via Raspberry Pi (optional)
- Wi-Fi connection: via Raspberry Pi (optional)
- Advanced sensors: 3 thermistors, fans RPM monitoring, SuperPINDA
- Calibration: Automatic, Mesh Bed Leveling, SelfTest
- Print medium: SD card (16 GB card included)
- Firmware update: via PC (USB cable)
- PSU: Custom-made Delta PSU with hardware-based power panic
- Advanced features: Automatic filament loading, steel sheet profiles, Octoprint compatibility and more
- New features introduced through firmware upgrades
6 reasons to buy the MK3S+
Great User Support
Prusa Research offer 24/7 tech support via live chat and email in seven languages. Original Prusa printers come with detailed instructions and guides for easy assembly and maintenance. You can also visit the Prusa Research knowledge base, community forum, Facebook groups and official Blog, where Prusa Research publishes useful 3D printing tips and tricks, contests and more!
By purchasing from Printed Solid your support will go even further. With our USA based staff we can help you with an additional layer of support to help you get going with your 3D printing journey.
ADVANTAGES OF AN ASSEMBLED 3D PRINTER
Compared to the assembly kit, the assembled printer differs only in the form in which you receive it. The printer comes pre-assembled and tested right out of the box. To start your first print, simply plug it in, run the initial calibration, and you are good to go. It is an ideal choice for businesses and education where there is a need to start printing as soon as possible.
Built-in Safety Features
Original Prusa 3D printers are well-known for their reliability and safe operation. Every part of their printers is thoroughly tested in-house. The MK3S+ is equipped with three thermistors and comes with a custom-built high-quality Delta power supply. The printer can recognize issues with heating and stop operation to prevent damage.
Open-source and Community Friendly
All parts of their printer are open-source, which means they publish all source codes and blueprints online. The community around their products is huge and the feedback is overwhelmingly positive - don't believe us? Check out their Facebook groups and YouTube videos! There's so much to do with your 3D printer - buying it is just the beginning!
Ready for the Multi-Material Upgrade 2S
Multi Material Upgrade 2S is our unique add-on option for printing with up to 5 different filaments simultaneously. Multi-material could be your next step in the 3D printing world and the MK3S and MK3S+ are completely ready for the upgrade! MMU2S also allows you to print a soluble support interface
One of the most popular features of the Original Prusa i3 concept is upgradability. When you buy their 3D printer, in most cases you can upgrade it later to a newer version, so you don't need to buy a whole new model every two years like, for example, your phone or laptop. They also keep supporting their 3D printers with regular firmware updates that bring new features!
Ready to print settings
Prusa Research provides high quality print settings with the printer, so you don't have to dive into complex new programs the second you finish the build. You can start printing right away, and this gives you a great head start!
These settings are great for all kinds of objects, not just for a couple of prepared showpieces. After a while, when you're familiar with the printer, you can, of course, dive into tinkering ;-)
PrusaSlicer is a feature-rich, frequently updated tool that contains everything you need to export the perfect print files for your Original Prusa 3D printer. But of course, Prusa Research also have the settings for the third party slicers like Simplify3D, Cura, etc.
